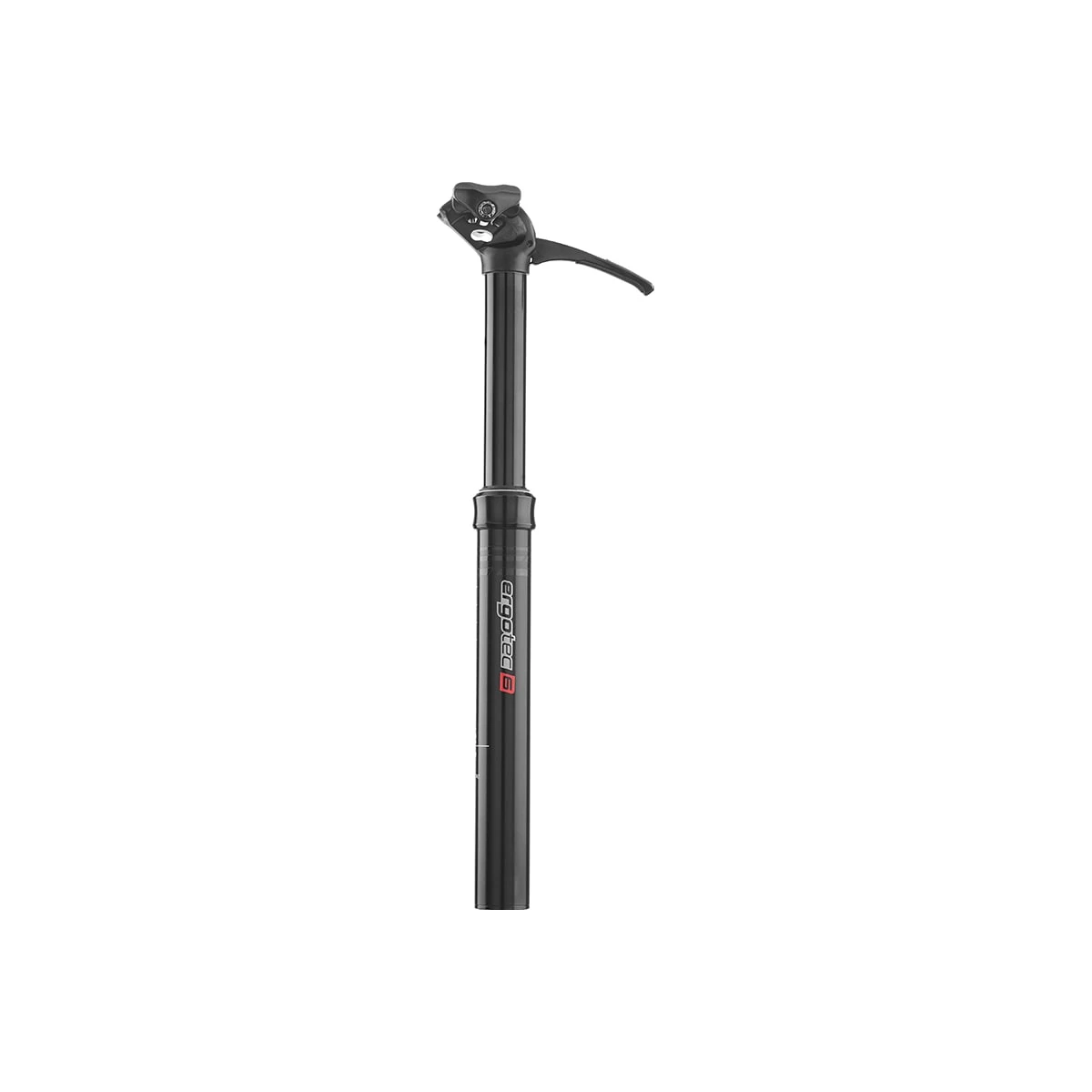

Ergotec Up And Down Dropper Post

With the ergotec Up and Down post you will enjoy the advantages and comfort of a dropper seat post without worrying about fiddly cable fitting. The air cartridge that is responsible for the lift mechanism is directly actuated by a lever on the dropper post.

Since there are no cables, fitting the post is as easy as with a conventional seatpost. Yet, the Up and Down has so much more to offer: Press hard on the pedals with the post fully extended and enjoy maximum freedom of movement while descending. Change your riding position within seconds without stopping mid-ride to use the quick release. All you need to do is actuate the lever below the saddle.

It goes without saying that ergotec’s Up and Down is classified within the highest level 6 of ergotec’s proprietary safety rating, so that it is intended for tough conditions in mountain biking. Yet, the low-priced dropper post also cuts a fine figure on modern gravel or cross bikes, allowing the rider to get the saddle out of the way in technically challenging situations. In addition, the post is available in a slim version for 27.2 mm seat tubes.

Details:
• Solidly built dropper post for fast saddle adjustment
• Actuated by an easy-to-reach lever underneath the saddle
• Easy installation without cable routing
• Lift mechanism via air cartridge
• Designed to cope with heavy loads (ergotec Safety Level 6*)

Specs:

Ø 31.6 mm
• Material: aluminium 6061 T6
• For seat tube Ø 31.6 mm
• Travel: approx. 120 mm
• Offset: approx. 15 mm
• Length: approx. 400 mm
• Saddle clamp for Ø 7 mm saddle rails
• Minimum stack height (dropped): approx. 70 mm
• Maximum stack height (extended): approx. 190 mm
• Minimum insertion depth: approx. 92 mm
• Maximum insertion depth: approx. 215 mm
• Max. Rider’s weight (incl. backpack): City/Touring (incl. e-bikes up to 25 km/h/15.5 mph) 140 kg, MTB/Race (incl. electric bikes) 120 kg
• Weight: approx. 664 g

Ø 27.2 mm
• Material: aluminium 7075 T6
• For seat tube Ø 27.2 mm
• Travel: approx. 100 mm
• Offset: approx. 15 mm
• Length: approx. 390 mm
• Saddle clamp for Ø 7 mm saddle rails
• Minimum stack height (dropped): approx. 90 mm
• Maximum stack height (extended): approx. 190 mm
• Minimum insertion depth: approx. 122 mm
• Maximum insertion depth: approx. 190 mm
• Max. Rider’s weight (incl. backpack): City/Touring (incl. e-bikes up to 25 km/h/15.5 mph) 140 kg, MTB/Race (incl. electric bikes) 120 kg
• Weight: approx. 618 g

In the box:
• 1x ergotec Up & Down dropper seat post

*The product classification of the ergotec Safety Level complies with the DIN EN ISO 4210 standard for bikes and DIN EN 15194 for e-bikes.

Manufacturer: Wilhelm Humpert GmbH & Co. KG, Erlenstrasse 25, 58739 Wickede/Ruhr, Deutschland, www.ergotec.de
